L'espansione FR-T0400K è il modulo progettato per l'acquisizione accurato della temperatura nei processi industriali.
| Modello | FR-T0400K |
| Prodotto | Espansione |
| Input | 4 |
| Sensor type | K, J, R, S, B, E, T, N, C type thermercouple NTC/PTC |
| Measuring range | K -200...1300 °C | J -200...1000 °C | R 0...1760 °C | S 0...1760 °C | B 0...1820 °C | E -200...800 °C | T -200...400 °C | N -200...1300 °C | C 0...2315 °C | NTC: Measuring range 100 Ω...200 kΩ, Temperature calculation range -90...150 °C | PTC: Measuring range 100Ω...10KΩ |
| Measuring precision | Thermercouple (Max ±0.3% or 1 °C of display value) | NTC (Max ±0.1% or ± 1 °C of display value) |
| Storage Temperature | -20~70°C |
| Operating Temperature | -10~60°C |
| Relative Humidity | 5%~95%RH (Non-condensing) |
| Dimension | 111 × 18 × 76mm |
| Weight | 65g |

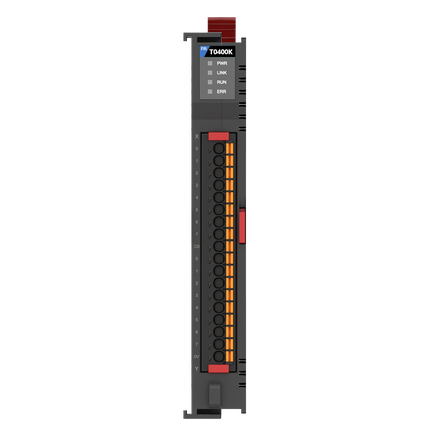

FR-T0400K
