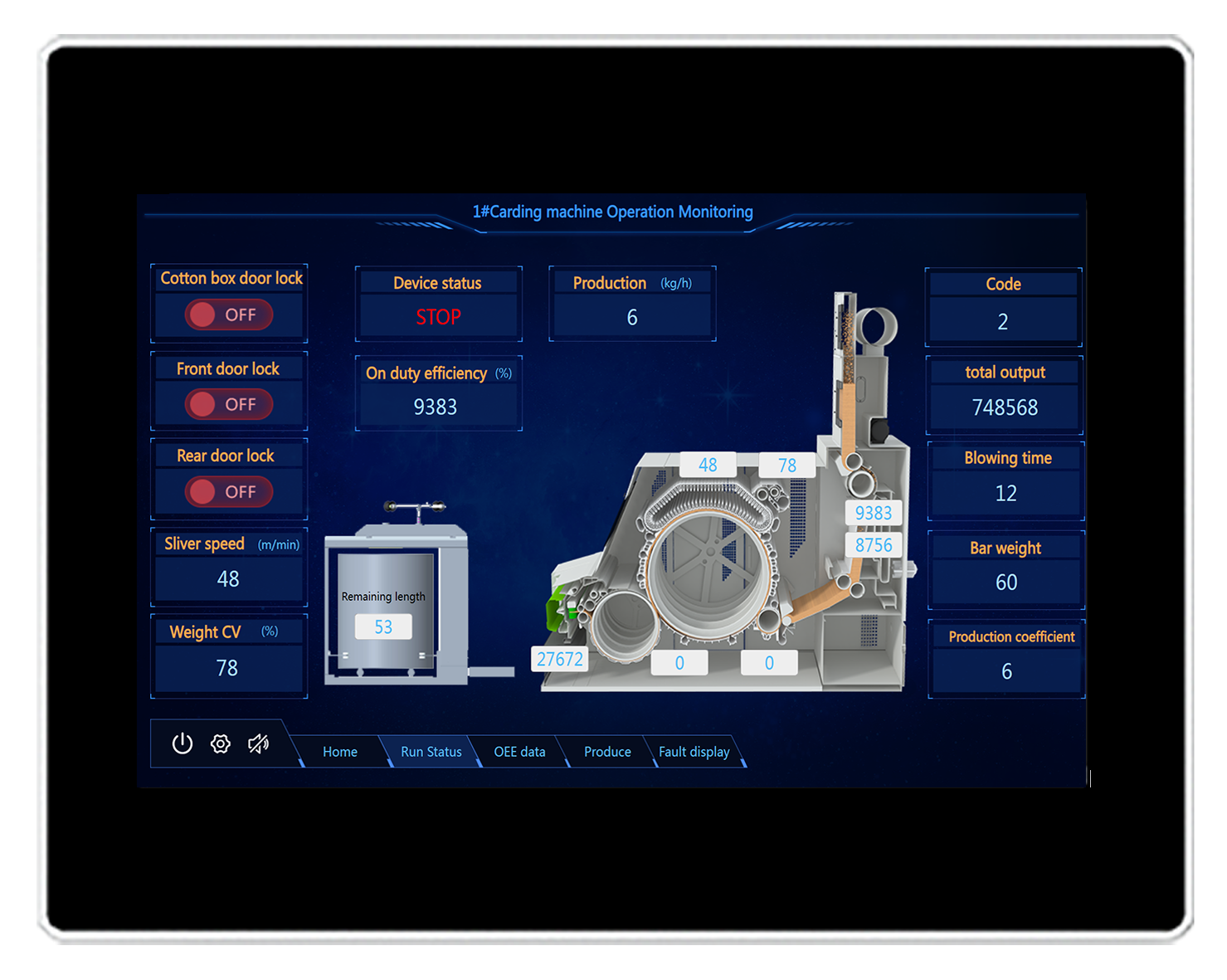

HMI ad alte prestazioni con display multitouch a 5 punti, design compatto e installazione a filo o VESA.
Dotati di CPU octa-core, doppia Ethernet Gigabit, webserver integrato per accesso remoto, comunicazione DB/API e supporto alla visualizzazione di modelli 3D.
| Touch | Capacitivo |
| Feature | WebHMI |
| Performance | High |
| Inch | 12,1" |
| Form Factor | 16:10 |
| Display | LCD |
| Resolution | 1280 x 800 |
| Colors | 24bit |
| LCD view angles (T/B/L/R) | 85'/85'/85'/85' |
| Brightness | 400cd/m2 |
| Backlight | LED |
| Display life | 50000h |
| CPU | CPU: 4*Cortex-A72 + 4*Cortex-A53 2.2GHz | GPU: Mali G52 |
| RAM | 2GB |
| Storage | 16GB |
| Battery backup Memory | Stored in storage |
| RTC | Built in |
| SD card | - |
| Ethernet | 2x 10/100/1000Mb/s |
| USB Host | 2x USB 3.0 Type A |
| Programming port | Ethernet |

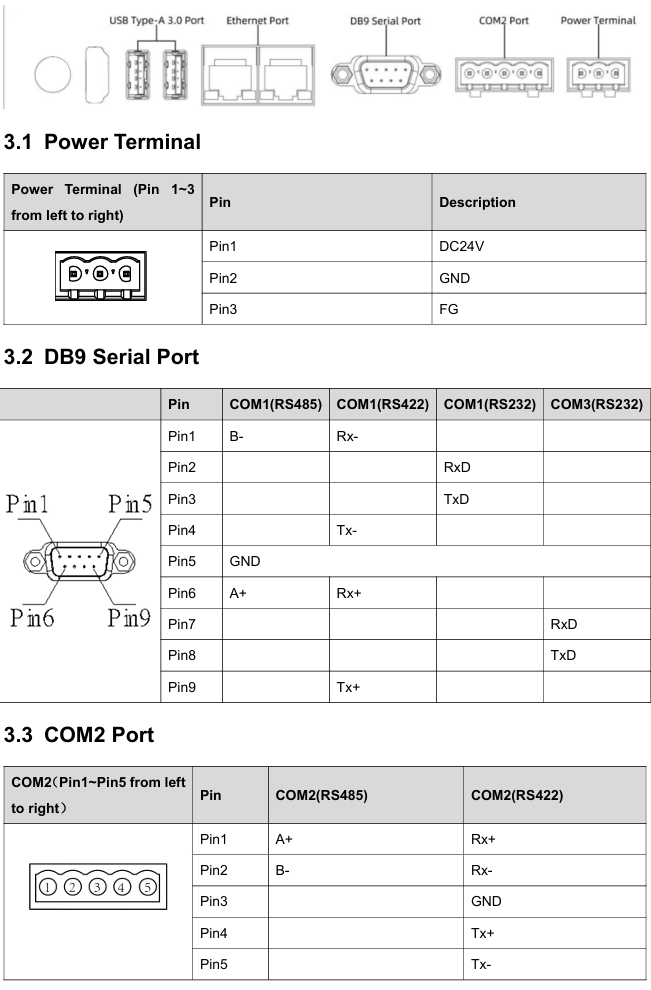

| COM 1 | RS232/422/485 |
| COM 2 | RS422/485 |
| COM 3 | RS232 |
| COM 4 | - |
| COM 5 | - |
| Power Supply | 18 - 28 Vdc |
| Power Consumption | < 15W |
| Storage Temperature | -20 ~ 70 °C |
| Operating Temperature | -10 ~ 60°C |
| Relative Humidity | 10 - 90%RH (non-condensate) |
| Vibration | 10 - 25Hz (x-y-z 2G/30min) |
| Protection Degree (Front) | IP65 |
| Protection Degree (Back) | IP20 |
| Lightning | Lightening &Surging ±1KV, Group Pulse ±2KV, Static Contact: 4KV, Air Discharge: 8KV |
| Case Material | Non-ferrous alloy |
| Mounting | Panel-mount, VESA (100 x 100mm) |

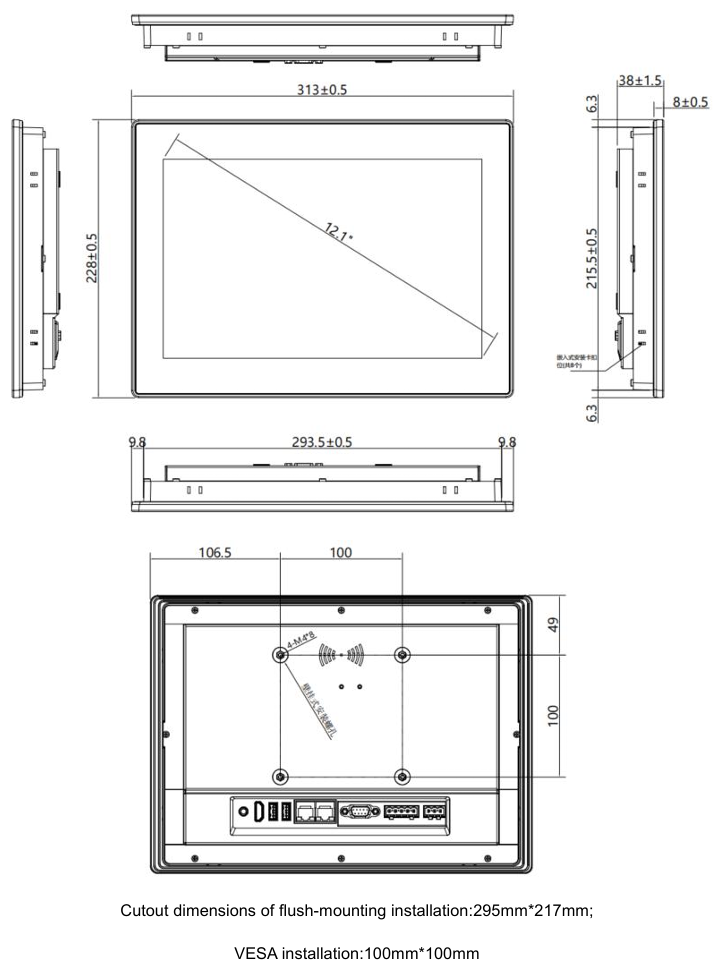

| Cutout | 295 × 217mm |
| Dimension | 313 x 228 x 38mm |
| Weight | 2300g |
| CE | EN61000-6-2:2005, EN61000-6-4:2007 |
| RoHS | Compilant |
| UL | - |
FPAD712X
